Brand: SiGMA
Categories: Dynamometer, Wireless Load Cell
4,400.00 AED (Excl. VAT)

4,400.00 AED (Excl. VAT)

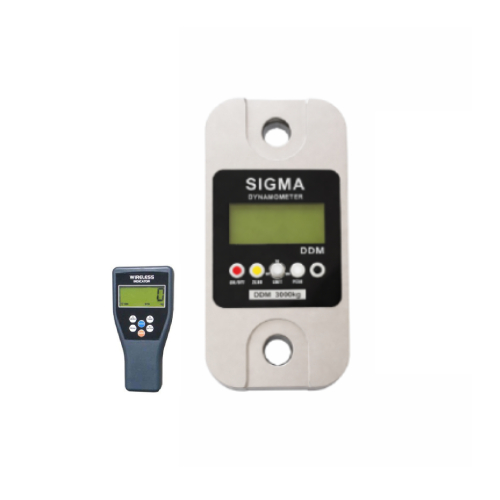

DDM-W3 wireless dynamometer is an extremely well-built instrument for industry use, as a standard wireless tool that offers universal applications. The indicator 380 is handheld and very compact to use, making the customer requirements simpler and handier. DDM-W3 wireless dynamometer is microprocessor controlled for high precision accuracy, calibration is easier with Palm size 380 indicator.
Specifications:
Features:-
| Display | 25mm (1’’) 5digits LCD |
| Power on zero range | 20% F.S. |
| Manual Zero Range | 4% F.S. |
| Tare Range | 20% F.S. |
| Stable Time | ≤10seconds |
| Overload Indication | 100% F.S. + 9e |
| Max. Safety Load | 125% F.S. |
| Ultimate Load | 400% F.S. |
| Battery Life | ≥40 hours |
| Battery Type | “LR6(AA)”size alkaline batteries. 1.5Vⅹ3 |
| Operating Temp | – 10℃ ~ + 40℃ |
| Operating Humidity | ≤85% RH under 20℃ |
| Remote Controller Distance | Min. 15m |
| Wireless Frequency | 2.4GHz(default),433MHz,860MHz(optional) |
| MODEL | Max. capacity (kg/lb) | Min. weigh(kg) | Division (kg /lb) | Total dispay counts (n) |
|---|---|---|---|---|
| DDM-W3-05 | 5000/1100 | 40/80 | 2/4 | 2500 |
| MODEL | A(mm) | B(mm) | C(mm) | D(mm) | φ(mm) | H(mm) | Material |
|---|---|---|---|---|---|---|---|
| DL-W3-05 | 285 | 123 | 57 | 210 | 58 | 405 | Aluminum |
| Model | |
|---|---|
| Warranty | |
| Scale Division | |
| Series | |
| Product type | |
| Weighing Scale Capacity | |
| Power Supply | |
| Type of display | |
| Units | |
| Placement |
