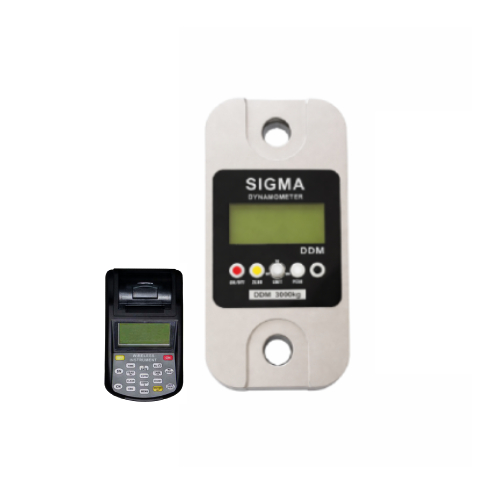

DDM-W5 wireless dynamometer is an extremely well-built instrument for industry use, as a standard wireless tool offer universal applications, Whether used as conventional crane weigher or to measure force, DL-W5 wireless dynamometer is the latest design, compatible with the concept of portable, print and easy to operate. Shoulder bag style leather case, easy to carry, suitable for protected outdoor use., calibration is easier with 580 indicator.
Body display | 25mm (1’’) 5digits LCD with backlight |
Indicator display | 25mm (1’’) 5digits LCD with backlight |
Power on zero range | 20% F.S. |
Manual Zero Range | 4% F.S. |
Tare Range | 20% F.S. |
Stable Time | ≤5seconds |
Overload Indication | 100% F.S. + 9e |
Max. Safety Load | 125% F.S. |
Ultimate Load | 400% F.S. |
Battery Life | ≥50 hours |
Body Battery | “LR6(AA)”size alkaline batteries. 1.5Vⅹ3 |
Indicator Battery | Rechargable Ni-H battery, SC 3.5Ah |
Operating Temp | – 10℃ ~ + 50℃ |
Operating Humidity | ≤85% RH under 20℃ |
Indicator printer | FUJITSU FTP-628 MCL101#50″ high speed thermal printer |
Wireless Distance | Min. 80m(default) [200m(optional)] |
MODEL | Max. capacity (kg/lb) | Min. weigh(kg/lb) | Division(kg/lb) | Total dispay counts (n) |
---|---|---|---|---|
DDM-W5-01 | 1000/2200 | 10/20 | 0.5/1 | 2000 |
DDM-W5-02 | 2000/4400 | 20/40 | 1/2 | 2000 |
DDM-W5-03 | 3000/6600 | 20/40 | 1/2 | 3000 |
DDM-W5-05 | 5000/1100 | 40/80 | 2/4 | 2500 |
DDM-W5-10 | 10000/22000 | 100/200 | 5/10 | 2000 |
DDM-W5-20 | 20000/44000 | 200/400 | 10/20 | 2000 |
DDM-W5-30 | 30000/66000 | 200/400 | 10/20 | 3000 |
MODEL | A(mm) | B(mm) | C(mm) | D(mm) | φ(mm) | H(mm) | Material |
---|---|---|---|---|---|---|---|
DL-W5-01 | 245 | 112 | 37 | 190 | 43 | 335 | Aluminum |
DL-W5-02 | 245 | 112 | 37 | 190 | 43 | 335 | Aluminum |
DL-W5-03 | 260 | 123 | 37 | 195 | 51 | 365 | Aluminum |
DL-W5-05 | 285 | 123 | 57 | 210 | 58 | 405 | Aluminum |
DL-W5-10 | 320 | 120 | 57 | 230 | 92 | 535 | Alloy Steel |
DL-W5-20 | 420 | 128 | 74 | 260 | 127 | 660 | Alloy Steel |
DL-W5-30 | 420 | 138 | 82 | 280 | 146 | 740 | Alloy Steel |
Model | DDM-W5-01, DDM-W5-02, DDM-W5-03, DDM-W5-05, DDM-W5-10, DDM-W5-20, DDM-W5-30, DDM-W5-50, DDM-W5-100 |
---|---|
Capacity / Division | 1 ton / 0.5 kg, 2 ton / 1 kg, 3 ton / 1 kg, 5 ton / 2 kg, 10 ton / 5 kg, 20 ton / 5 kg, 30 ton / 10 kg, 50 ton / 20 kg, 100 ton / 50 kg |
Warranty | |
Interface |
